Cine Series
Cine Series
Daylight-bright Cine 4K Monitors are color-accurate, lightweight, durable, and easily adapt to a wide range of production use cases: Video Village, AC, DP, DIT, or as a director’s monitor.
Daylight-bright Cine 4K Monitors are color-accurate, lightweight, durable, and easily adapt to a wide range of production use cases: Video Village, AC, DP, DIT, or as a director’s monitor.
Shop Now10-bit
10-bit
Color Depth Color Depth100% Rec. 709
100% Rec. 709
Color Gamut Color Gamut3840 x 2160
3840 x 2160
Resolution Resolution1100–1500 nits
1100–1500 nits
Brightness BrightnessCompare

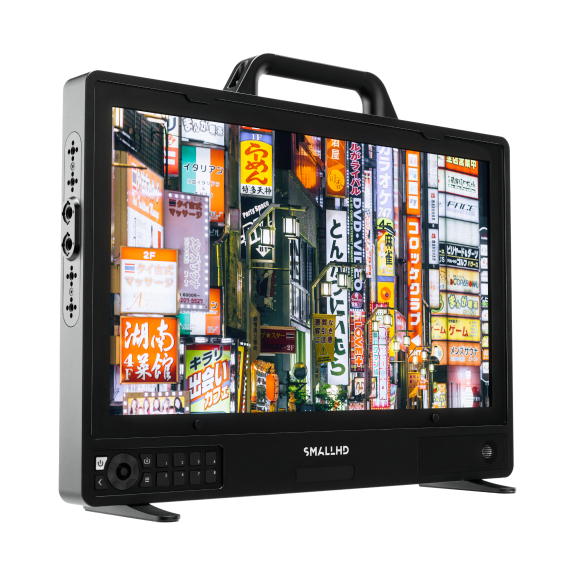

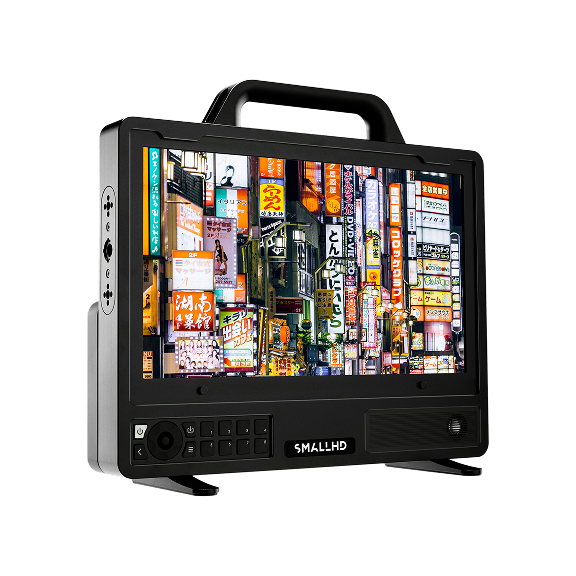

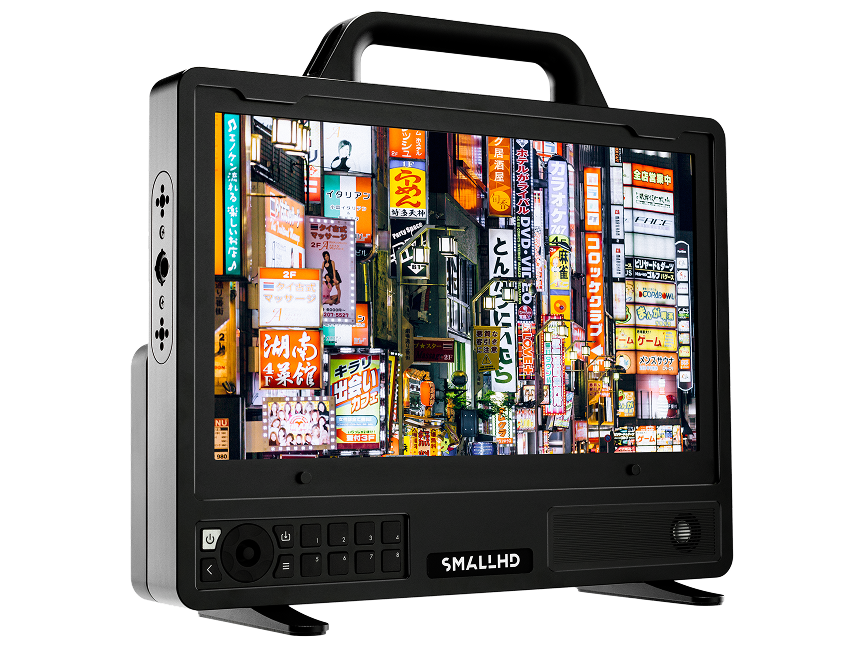

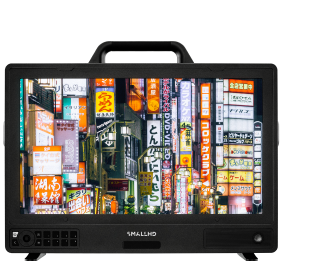

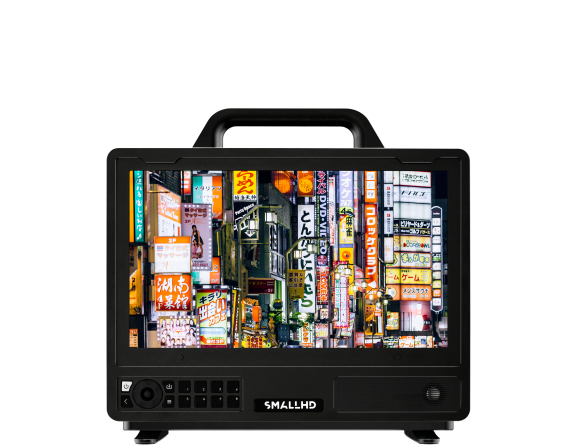

Cine 4K Monitors
Display Size

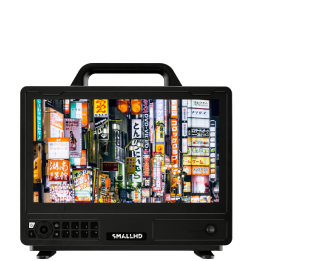

13.3in / 34cm

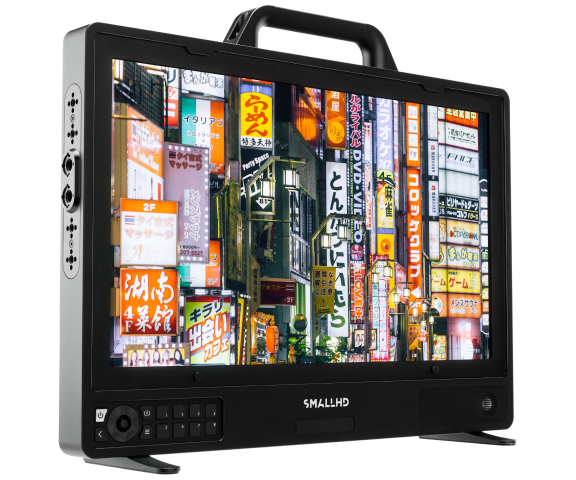

18.4in / 47cm

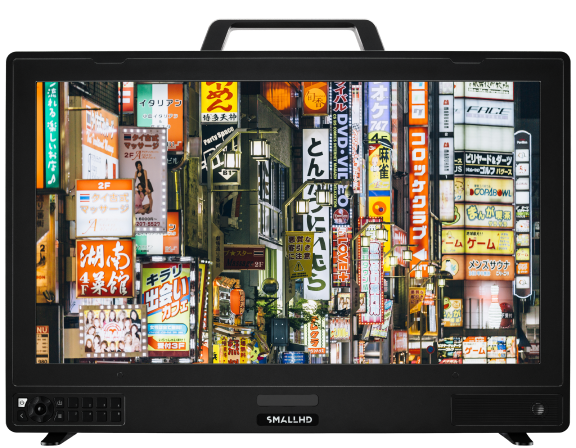

23.8in / 60cm
Weight
6.8lbs / 3.09kg
11.15lbs / 5.05kg
16.5lbs / 7.5kg
Color Coverage
100% Rec.709
100% Rec.709
100% Rec.709
95% DCI-P3
95% DCI-P3
Panel Resolution
3840 x 2160
3840 x 2160
3840 x 2160
Color Bit Depth
10-bit
10-bit
10-bit
Backlight Type
LCD (Edge-Lit LED)
LCD (Edge-Lit LED)
LCD (Edge-Lit LED)
Contrast Ratio
1300:1
1300:1
1000:1
Video I/O
4x 12G/6G/3G/HD-SDI
(multiplex coming soon)
(multiplex coming soon)
4x 12G/6G/3G/HD-SDI
(multiplex coming soon)
(multiplex coming soon)
4x 12G/6G/3G/HD-SDI
(multiplex coming soon)
(multiplex coming soon)
Max Brightness
1500nits
1100nits
1350nits
Power Input
Min: 12V 2.9A DC
Max: 34V 1.1A DC
Max: 34V 1.1A DC
Min: 12V 4.1A DC
Max: 34V 1.3A DC
Max: 34V 1.3A DC
Min: 12V 8.1A DC
Max: 34V 2.5A DC
Max: 34V 2.5A DC
Pixel Density
331ppi
239ppi
185ppi
Bottom Cheese Stick
Included
Sold Separately

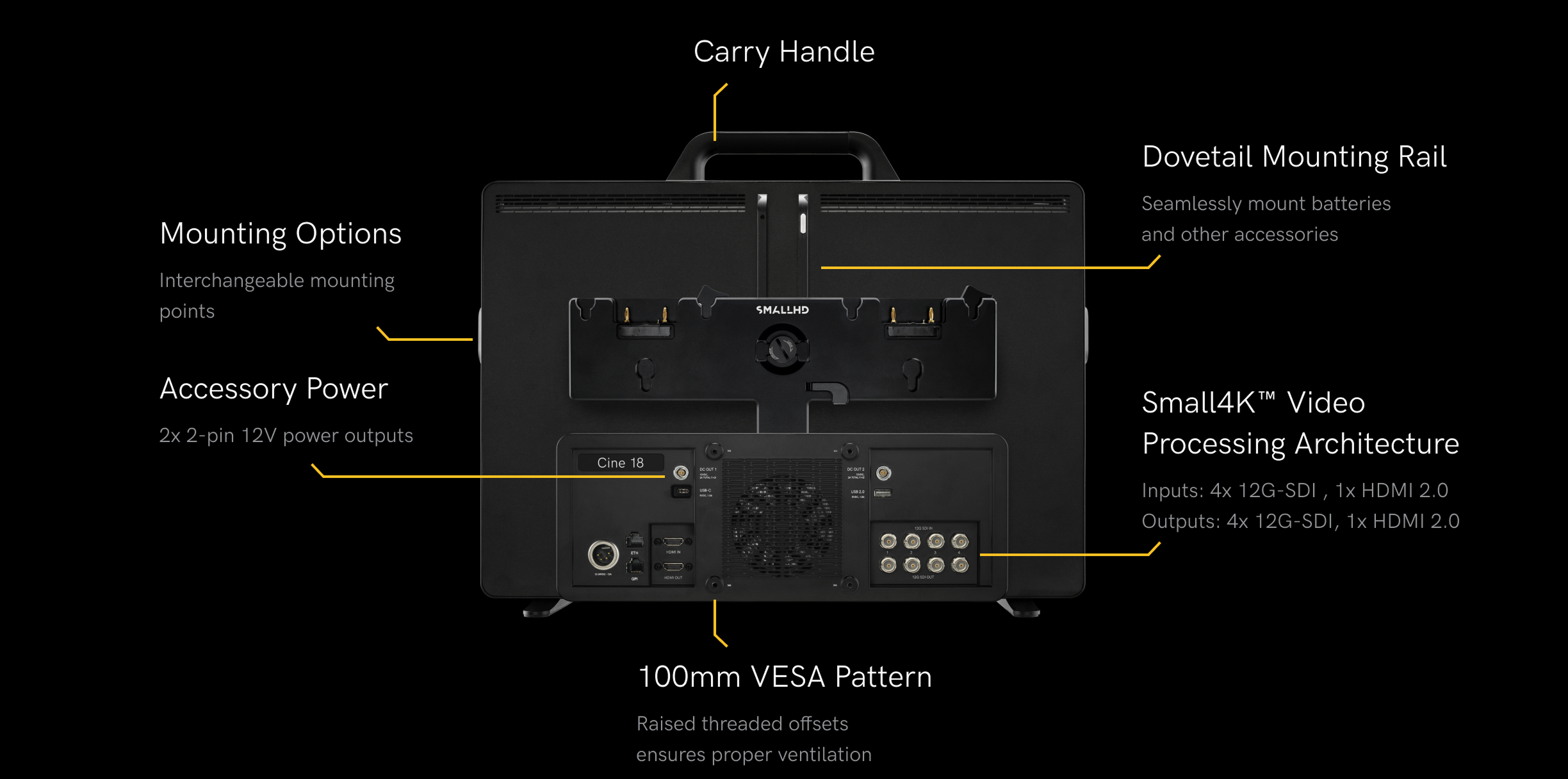

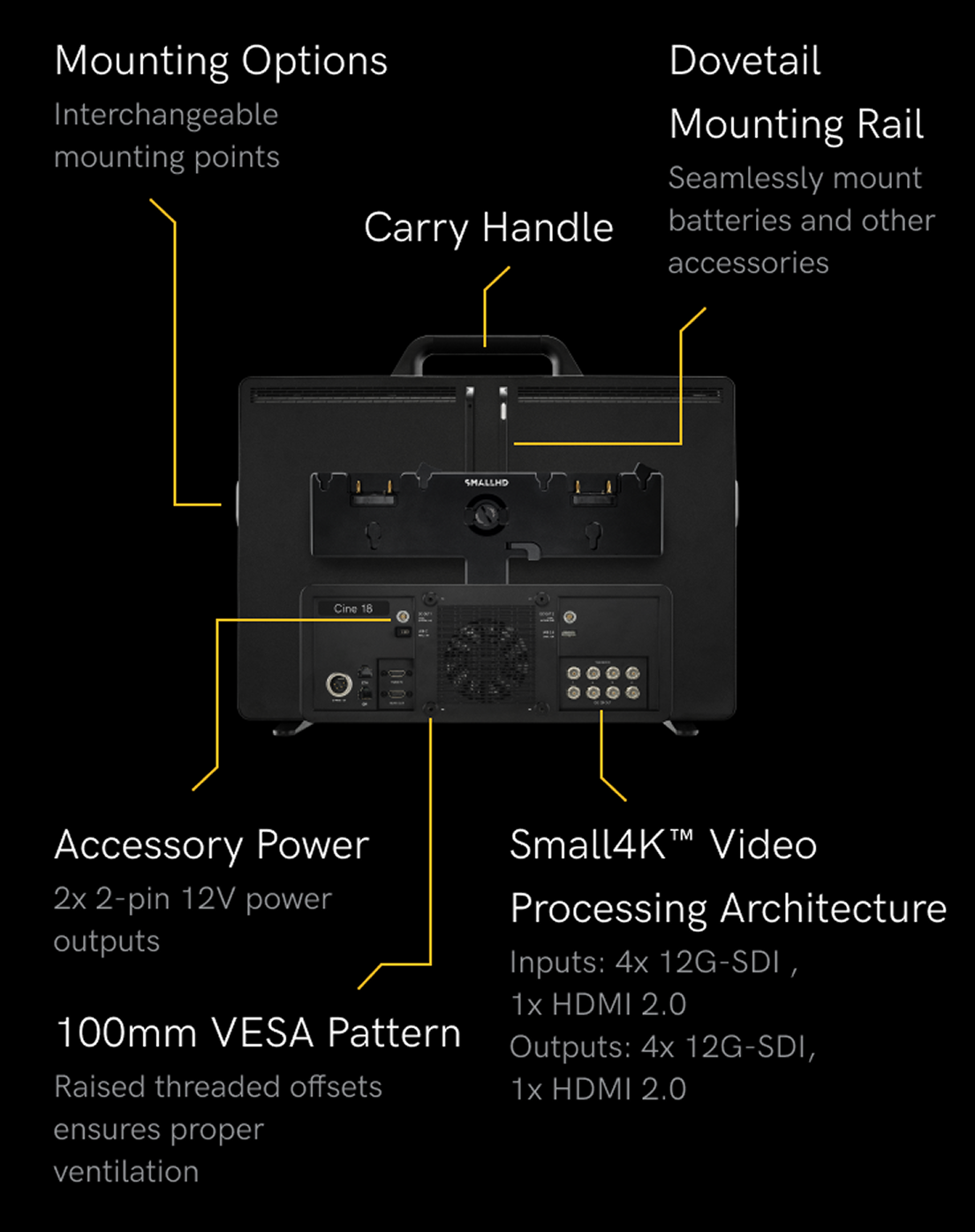

Mounting Options
1x 110mm VESA-compatible
rear mount
26x 1/4”-20 mounting points
4x 3/8”-16 mounting points
rear mount
26x 1/4”-20 mounting points
4x 3/8”-16 mounting points
1x 110mm VESA-compatible
rear mount
26x 1/4”-20 mounting points
4x 3/8”-16 mounting points
rear mount
26x 1/4”-20 mounting points
4x 3/8”-16 mounting points
1x 110mm VESA-compatible
rear mount
26x 1/4”-20 mounting points
4x 3/8”-16 mounting points
rear mount
26x 1/4”-20 mounting points
4x 3/8”-16 mounting points
PageOS
PageOS
A Dedicated OS
Designed for
Production
Monitors
A Dedicated OS
Designed for
Production
Monitors
All our production monitors run on PageOS, which features the powerful new functionality of Multi-View & seamless integration with Calman® calibration software on 4K production monitors. Additionally, PageOS introduces highly-anticipated tools like Look-Around Camera Control on all pages, EL Zone false color, Tetrahedral LUT interpolation, improved HD upscaling, and more.
All our production monitors run on PageOS, which features the powerful new functionality of Multi-View & seamless integration with Calman® calibration software on 4K production monitors. Additionally, PageOS introduces highly-anticipated tools like Look-Around Camera Control on all pages, EL Zone false color, Tetrahedral LUT interpolation, improved HD upscaling, and more.
See What’s New in PageOS 5
Color Pipe
Easily configure each of the five independent 4K video inputs on
SmallHD 4K Production monitors with a custom input and output
display configuration. Convert camera log signals into multiple
HDR or SDR display setups, and switch effortlessly between these
presets with the click of a function button on any page.
Multi-View
View up to four camera feeds at once on Cine and OLED Series and up to two camera feeds on Vision Monitors. Select from several
options for multi-view configuration, and assign scopes and other
video engineering tools for an endless variety of customizable
layouts.
Integrated Calibration
SmallHD monitors are Calman® Ready, with a seamless integration
tool for Cine and OLED 4K Series Production Monitors. Connect
your 4K monitor via ethernet to a computer with a calibration
probe running Portrait Displays® Calman®, and a calibration LUT
will be uploaded directly into your monitor when finished.
EL Zone
The stop-based exposure map tool—developed in collaboration
with legendary cinematographer, Ed Lachman, ASC—that works
like a virtual spot meter, replacing IRE exposure values with stops.
Sensor data from the camera provides a reference point, and a
false color represents each stop above and below 18% gray,
allowing for easier, more intuitive on-set communication.
Livegrade Integration
Pomfort Livegrade is now an integrated plug-in, enabling colorists
and DITs to connect their reference monitor with a computer via single Ethernet cable, transforming their monitor into a dual-
purpose color grading tool.
Video Engineering Tools
4K Waveform
Robust exposure tool plotting your images luminance and
chrominance to a graph that matches your screen left to right.
chrominance to a graph that matches your screen left to right.
Vectorscope
Plots the hue + saturation onto a color wheel, so to help gauge
complimentary color.
complimentary color.
Histogram
High resolution, low latency histogram is perfect for determining the
overall exposure balance of your image.
overall exposure balance of your image.
Exposure Measurement
Choose from industry-standard options or create your own custom
False Color mapping.
False Color mapping.
Pro Testimonials
Lightweight. Durable. Adaptable.
Lightweight. Durable. Adaptable.
A Unibody Smart Chassis, a full complement of I/O options, integrated mounting points, and a field-tested reputation for lightweight durability.
A Unibody Smart Chassis, a full complement of I/O options, integrated mounting points, and a field-tested reputation for lightweight durability.
QD-LED Edge-Lit
LCD Panel Technology
QD-LED Edge-Lit
LCD Panel Technology
The LEDs SmallHD sources for Cine Series panels have the highest tolerance for color uniformity. These LEDs are built into an edge-lit panel stack that diffuses and focuses the light with a quantum-dot film layer to ensure the purest color accuracy. The result is an extremely bright monitor with excellent image fidelity.
The LEDs SmallHD sources for Cine Series panels have the highest tolerance for color uniformity. These LEDs are built into an edge-lit panel stack that diffuses and focuses the light with a quantum-dot film layer to ensure the purest color accuracy. The result is an extremely bright monitor with excellent image fidelity.
Pay in full or choose a flexible
payment plan with
.
Pay in full or choose a flexible
payment
plan with .

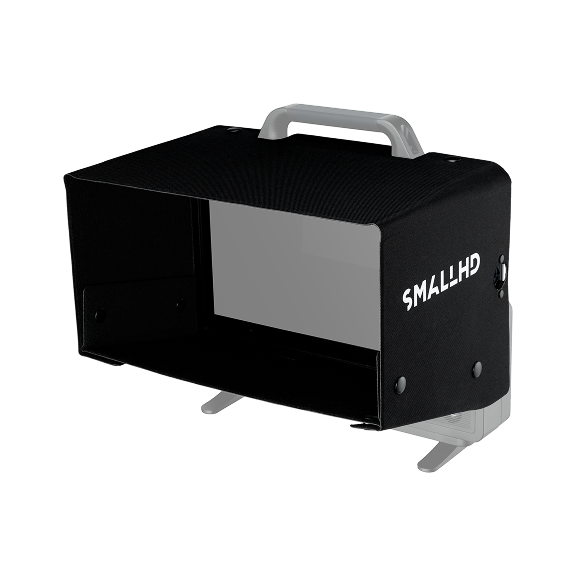

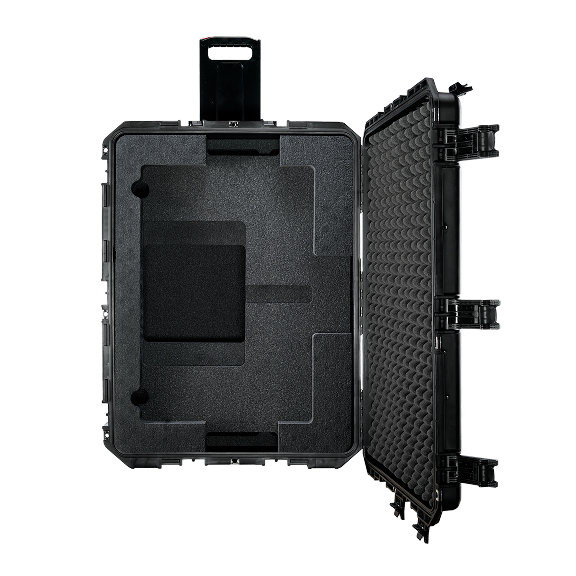

SCREEN PROTECTORS +
