4k OLED SERIES

Immaculate Color on
Set or in the Suite

Immaculate Color
on Set or in the Suite

Shop Now

OLED Series

Experience pristine color-accuracy and set-ready portability with SmallHD 4K OLED Monitors, the perfect solution for color perfectionists on set and in the suite. With 350–550 nits of brightness, a 1,000,000:1 contrast ratio, and an absolute black point, these OLED Monitors deliver a real-time image as vivid and pristine as the final output.

Shop Now

>1,000,000:1

Contrast Ratio

DCI-P3

Color Gamut

3840 x 2160

Resolution

True 10-bit

Brightness

Up to
550nits

Max Brightness Max Brightness

0.005nits

Min Black Point Min Black Point

Compare
OLED Monitors

OLED 22

OLED 27

OLED 27 Buy

Display Size

21.6in / 55cm

26.9in / 68cm

Weight

9.4lbs / 4.2kg

13.16lbs / 5.96kg

Color Coverage

99% DCI-P3

Panel Resolution

3840 x 2160

Color Bit Depth

True 10-bit

Backlight Type

OLED

Contrast Ratio

>1,000,000:1

Video I/O

4x 12G/6G/3G/HD-SDI
(multiplex coming soon)
1x HMDI 2.0

Max Brightness

350nits

550nits

Power Input

Min: 12V 2A DC
Max: 34V 1A DC

Min: 25V 2.8A DC
Max: 34V 2.1A DC

Pixel Density

203ppi

163ppi

Mounting Options

1x 110mm VESA-compatible rear mount
26x 1/4”-20 mounting points
4x 3/8”-16 mounting points

PAGEOS 5

A Dedicated OS
Designed for
Production
Monitors

All our production monitors run on PageOS, which features the powerful new functionality of Multi-View & seamless integration with Calman® calibration software on 4K production monitors. Additionally, PageOS introduces highly-anticipated tools like Look-Around Camera Control on all pages, EL Zone false color, Tetrahedral LUT interpolation, improved HD upscaling, and more.

See What’s New in PageOS 5

Color Pipe

Easily configure each of the five independent 4K video inputs on
SmallHD 4K Production monitors with a custom input and output
display configuration. Convert camera log signals into multiple HDR
or SDR display setups, and switch effortlessly between these
presets with the click of a function button on any page.

Multi-View

View up to four camera feeds at once on Cine and OLED Series and up to two camera feeds on Vision Monitors. Select from several
options for multi-view configuration, and assign scopes and other
video engineering tools for an endless variety of customizable
layouts.

Integrated Calibration

SmallHD monitors are Calman® Ready, with a seamless integration
tool for Cine and OLED 4K Series Production Monitors. Connect
your 4K monitor via ethernet to a computer with a calibration
probe running Portrait Displays® Calman®, and a calibration LUT
will be uploaded directly into your monitor when finished.

EL Zone

The stop-based exposure map tool—developed in collaboration
with legendary cinematographer, Ed Lachman, ASC—that works
like a virtual spot meter, replacing IRE exposure values with stops.
Sensor data from the camera provides a reference point, and a
false color represents each stop above and below 18% gray,
allowing for easier, more intuitive on-set communication.

Livegrade Integration

Pomfort Livegrade is now an integrated plug-in, enabling colorists
and DITs to connect their reference monitor with a computer via single Ethernet cable, transforming their monitor into a dual-
purpose color grading tool.

Video Engineering Tools

4K Waveform Robust exposure tool plotting your images luminance and
chrominance to a graph that matches your screen left to right.

Vectorscope Plots the hue + saturation onto a color wheel, so to help gauge
complimentary color.

Histogram High resolution, low latency histogram is perfect for determining the
overall exposure balance of your image.

Exposure Measurement Choose from industry-standard options or create your own custom
False Color mapping.

Pro Testimonials

“OLED 27 has allowed my DOPs to have a larger canvas from which to light from, in both SDR 709 and HDR P3D65. The fact that I can choose between HD or 4K or SDR and HDR in the same monitor allows me, as the DIT, to fit a single monitor to be the right tool for nearly all projects we take on."

DANE BREHM
Production Technologist / ICG DIT

“This project was dedicated to capturing black voices, so we were able to use my OLED to be specific about color and exposure as we dialed in the lighting on our subjects. The gear allowed for seamless communication between me and my director."

SADE NDYA
Cinematographer

"Coming from a stills background color accuracy is crucial, the OLED 22 takes away so much of the guesswork that I've had to make with a less color accurate display. Being able to see color accurately cuts down on post workflows and the 22" display gives us a certain confidence that we are capturing what we need, and seeing small details. I love it"

MARK MANN
Focus Puller, Local 600

Superior Design. Superior Performance.

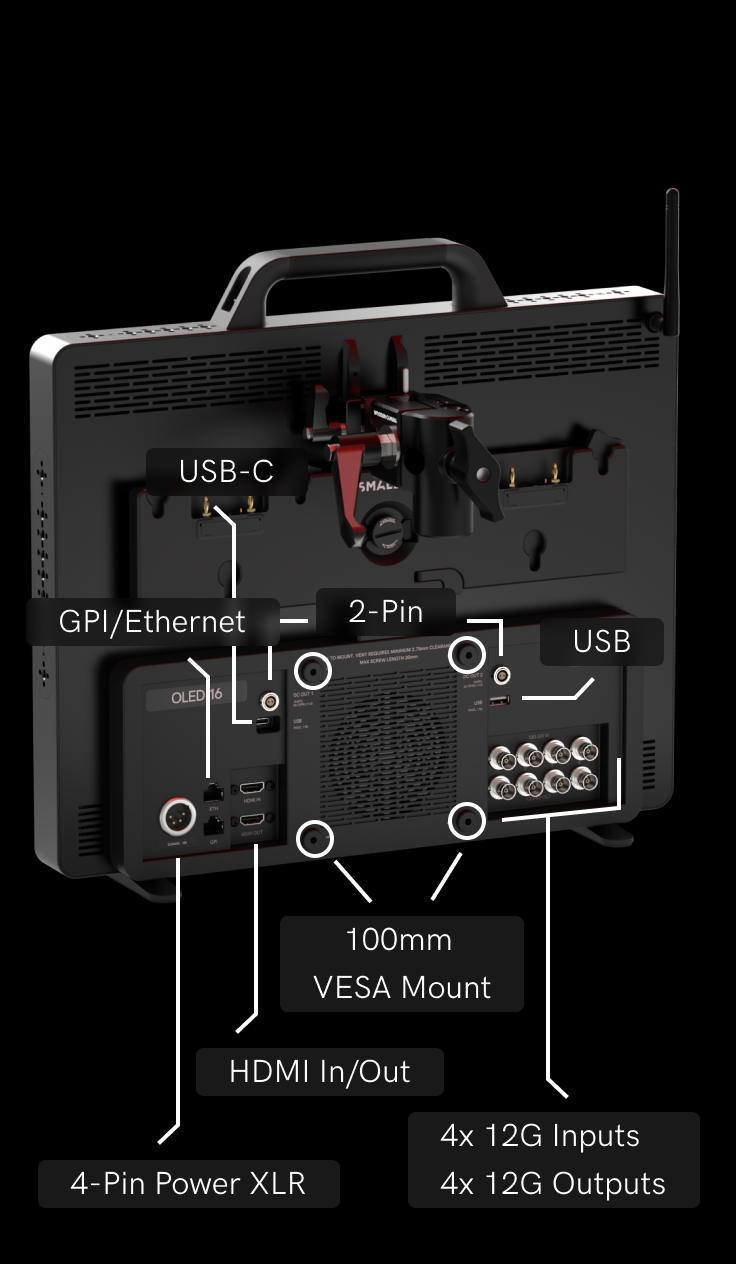

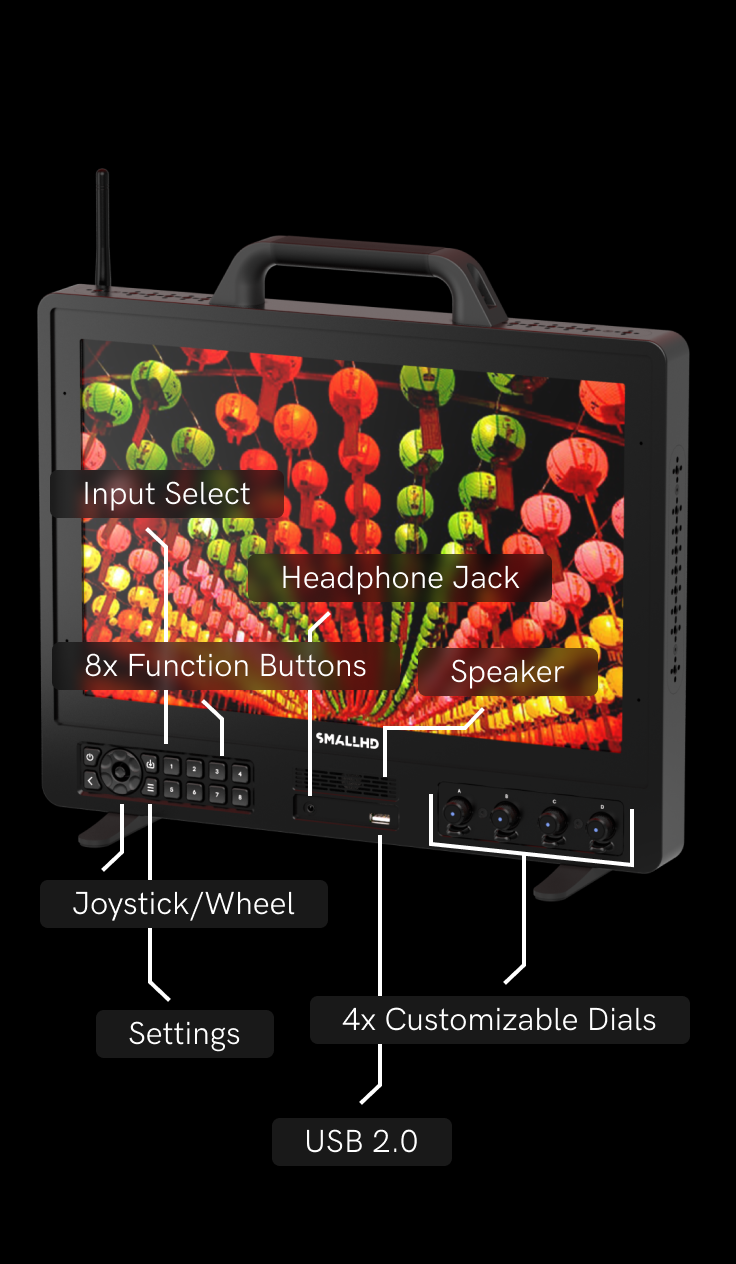

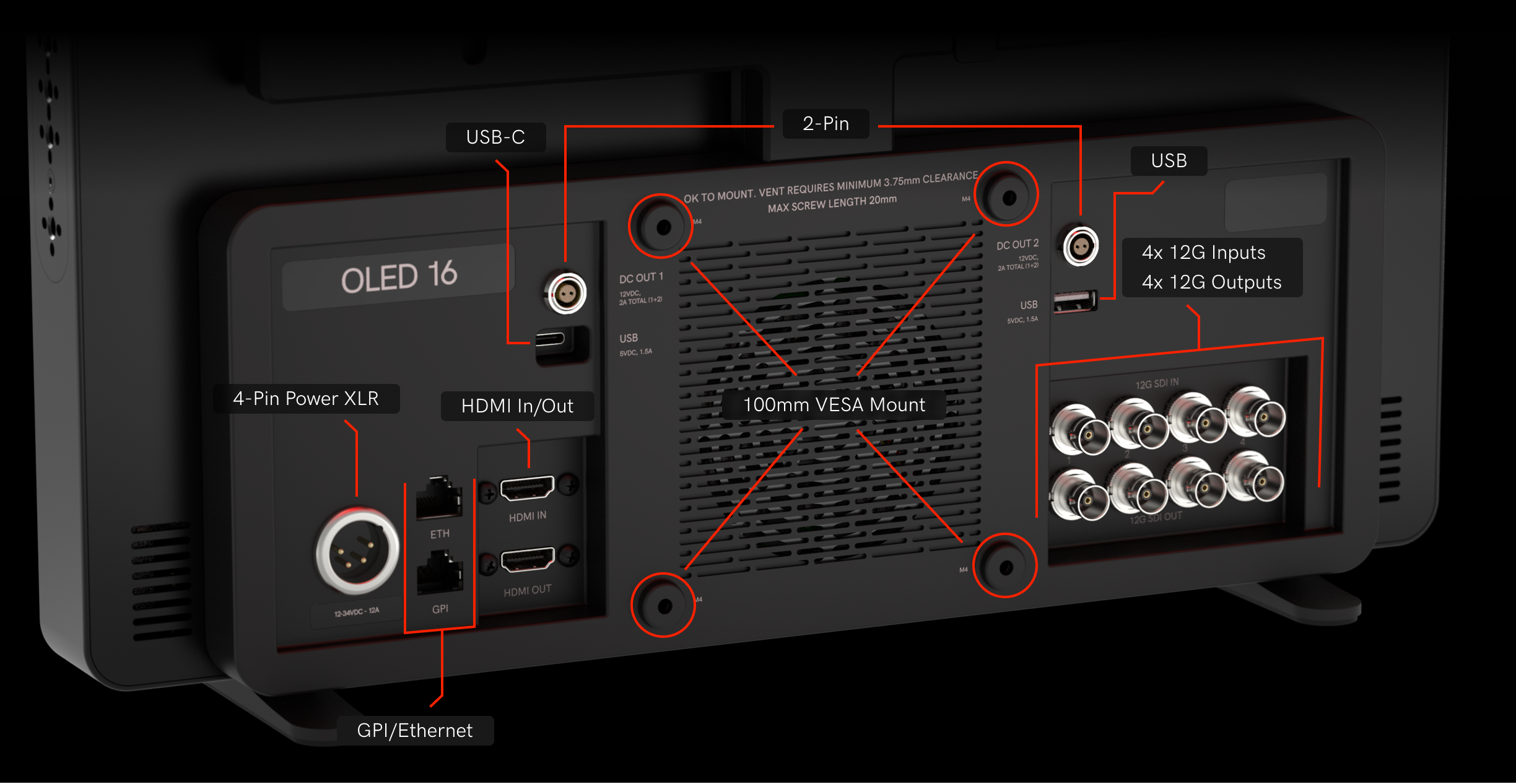

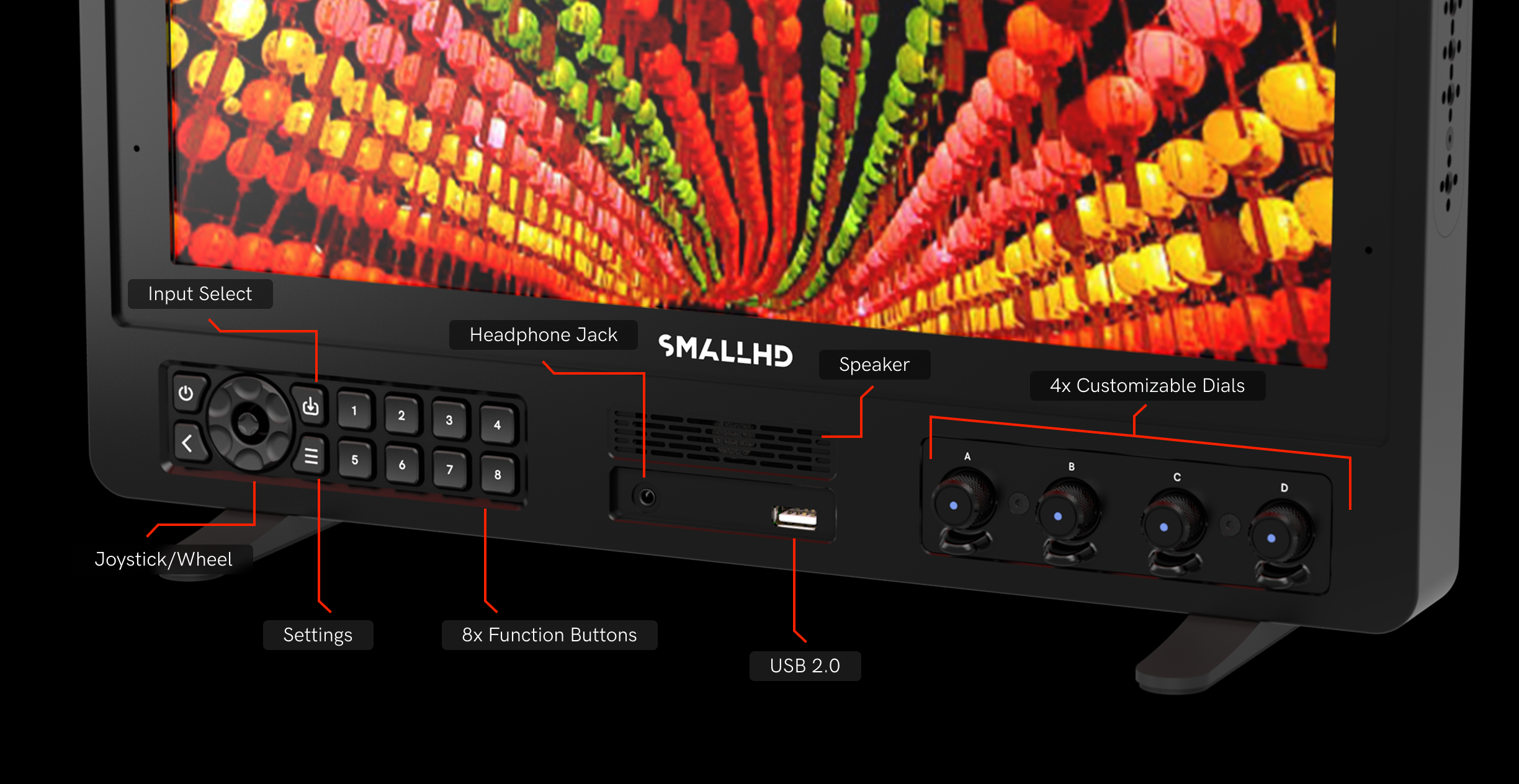

A Unibody Smart Chassis, a full complement of I/O
options, integrated mounting points,
and a field-
tested reputation for lightweight durability.

OLED Panel
Technology

Organic Light-Emitting Diode (OLED) is an emissive
display technology that uses organic
compound
layers to create a bright, energy-efficient image. The
direct-emissive characteristic of
OLED displays
allows for the widest-possible viewing angle.
Individual OLED sub-pixels can be
turned off
completely to emit no light, resulting in an
incredibly high-contrast image. Extremely
fast pixel
response time means less blurring and ghosting
during playback.

Shop OLED 4K Monitors Shop OLED 4K
Monitors

Sold Out
OLED 22

Starting at $9,999.00

Learn More

OLED 27

Starting at $11,999.00

Buy

Pay in full or choose a flexible payment plan with .

Pay in full or choose a flexible payment
plan with .

Learn More Learn More

SCREEN PROTECTORS +
SUNHOODS + CASES + More SCREEN PROTECTORS +
SUNHOODS + CASES + More

Explore
Accessories

Configure your 4K Monitor to your workflow.

Shop Now

Talk to an Expert

We’ll talk you through calibration and perceptual matching, Color Pipe configuration for HDR and SDR, and show you PageOS’ expansive capabilities.

We’ll talk you through calibration and perceptual matching,
Color Pipe configuration for HDR and SDR, and show you
PageOS’ expansive capabilities.

Contact Us
